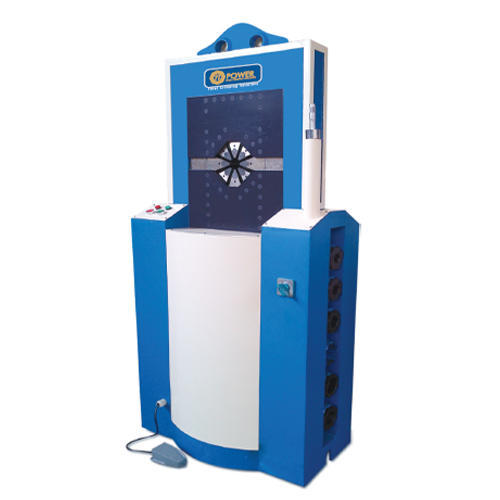

The latest innovation in Hose Crimping Machines, this heavy duty machine can crimp hoses from 1/4" to 3" R2 hoses and up to 2" 4 wire hoses. The specialty of the machine is that any complex shaped fitting such as long bend fitting can be crimped using this powerful machine.
| Crimping Capacity of 2 wire hose | 1/4 inches to 3 inches |
| Crimping capacity of 4 wire hose | 1/4 inches to 2 inch |
| Motor | 7.5 HP Crompton Make |
| Power supply | 3 Phase |
| No of die sets supplied | 12 |
| Maximum opening of master die | 155 mm |
| Width of head | 125 mm |
| Maximum working pressure | 315 bar |
| Hydraulic oil | SAE 68 |
| Capacity of Hydraulic oil tank | 120 liters |
| Height x length x width | 1900 x 1000 x 560 mm |
| Weight | 1500 kgs |
| Size of dies | 15,19, 23, 26,30, 34, 38, 45, 52, 62, 78, 90 |
