Pipe Crimping Machine

Pioneers in the industry, we offer pr52 hydraulic hose crimping machine from India.

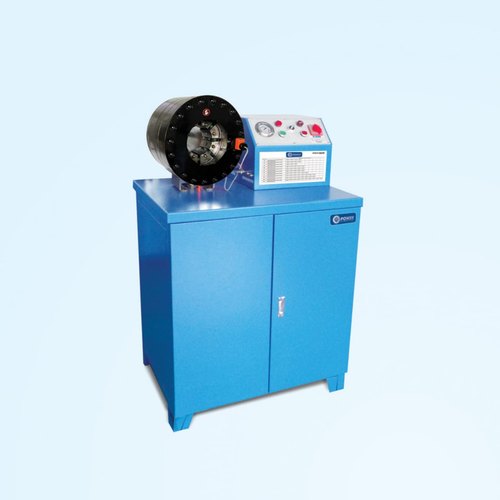

PR52 Hydraulic Hose Crimping Machine

Capacity 1/4 INCH -2 INCHES 4 wire hose

This is the most suited machine for manufacturing and bulk production of hydraulic hoses. With a speed of 400 cycles per hour, it is among the machines with highest productivity. Easy to operate, it can be operated even by an unskilled operator. The dies are easy to change and designed for, maximum life and optimum and equal crimping on all eight segments. Large openings at front and rear enables bend type fittings to be crimped. Micrometer control system ensures perfect crimping with an accuracy of 0.05 mm. This machine has the capacity to crimp 2 inch 4 wire hoses.

Enquire Now
  • Additional Informatio
Crimping Capacity of 2 wire hose 2 inches
Crimping capacity of 4 wire hose 2 inches
Opening at Front side 155mm
Maximum inside opening without dies 120 mm
Opening at Rear end 150 mm
Maximum working pressure 315 Bar
Kilowatt of motor 4 KW (5 HP)
Voltage 415 V
Capacity of oil tank 60 Litres
Number of dies 10
Sizes of dies 15,19,23,26,30,34,38,45, 52,62
Noise level <75db
Weight of the machine 300 Kg
Dimensions of machine(Lx Bx H) 775 x 600 x 1325 mm
Dimensions of Export packing(wooden box) 825 x 650 x 1375 mm
